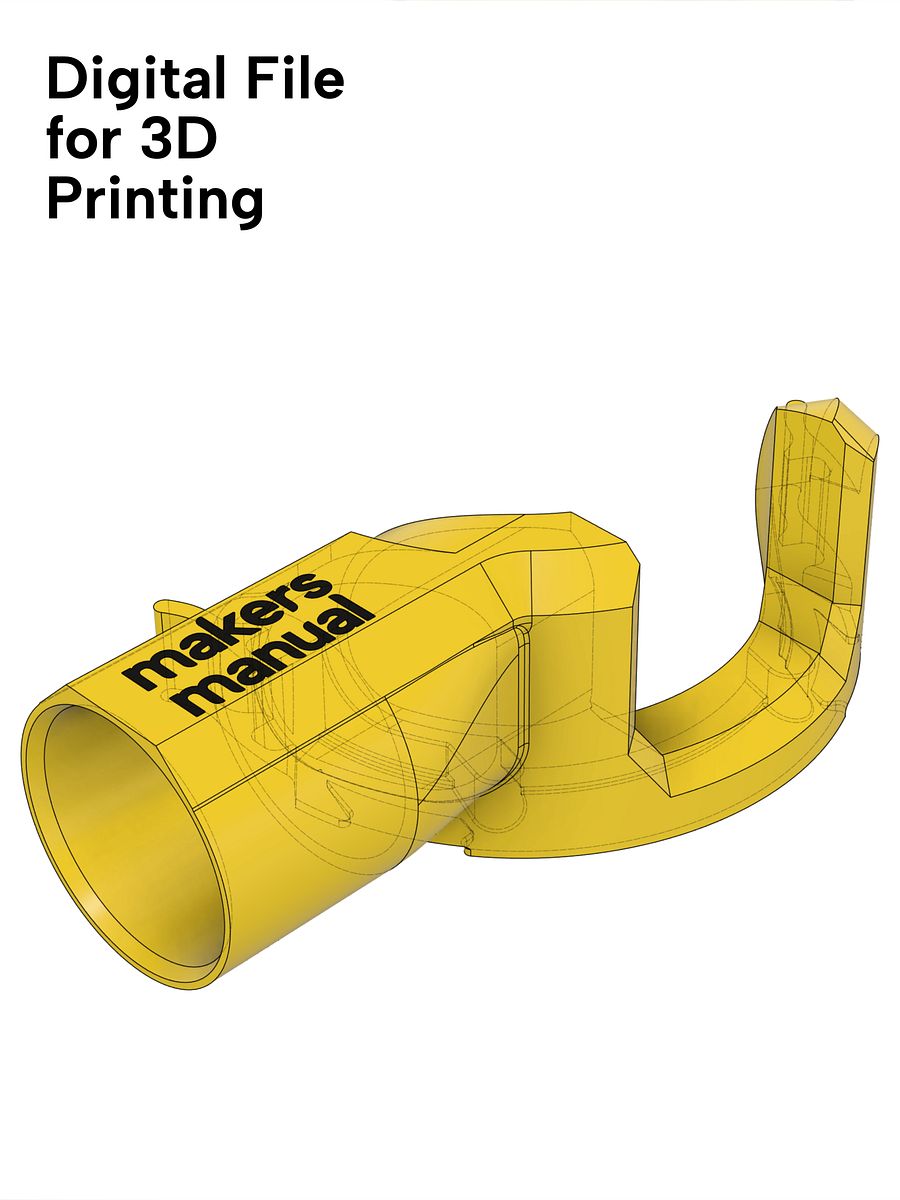

Dewalt Router Dust Extraction Adapter | Digital File
DIGITAL FILE - Improve dust collection when using your DeWalt compact router with this simple clip-on dust extraction adapter. Designed to connect your router to a standard shop vacuum, it helps reduce the amount of sawdust produced during routing.
The adapter is easy to install and remove, while providing a secure fit during use. It's also much quicker and easier to use than the original adapter. The front section remains open, allowing you to see the router bit while working.
Compatibility: Designed for the following DeWalt routers.
- DCW600
- DCW604
- D26200
- DWP611

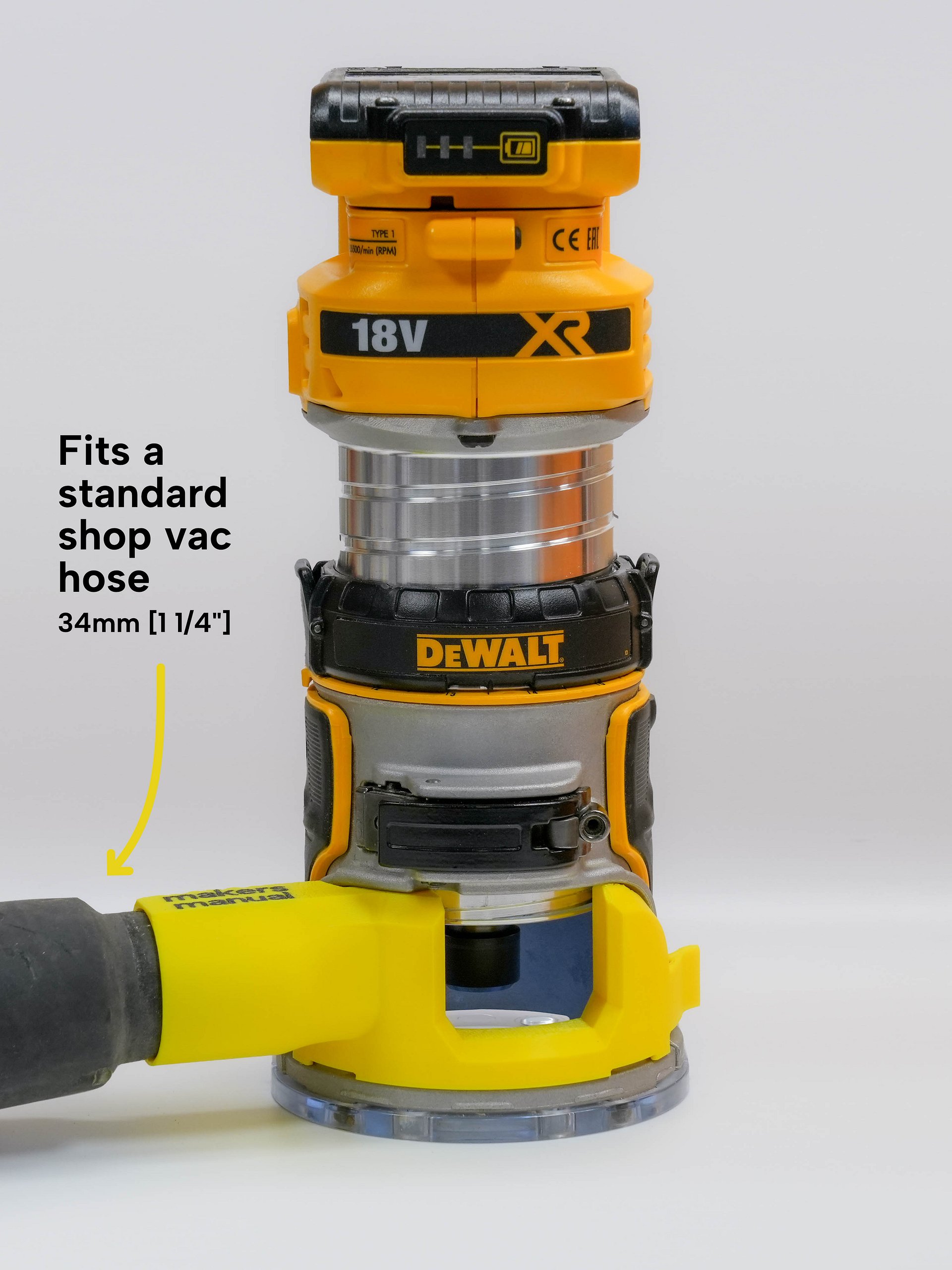

The vacuum connection accepts a hose nozzle approximately 34mm (1¼") in diameter.
Dust extraction performance will vary depending on the routing operation. It works particularly well when cutting V-grooves and rebates, but is less effective when using pattern templates, where dust is expelled downwards.
What Makes This Design Different?

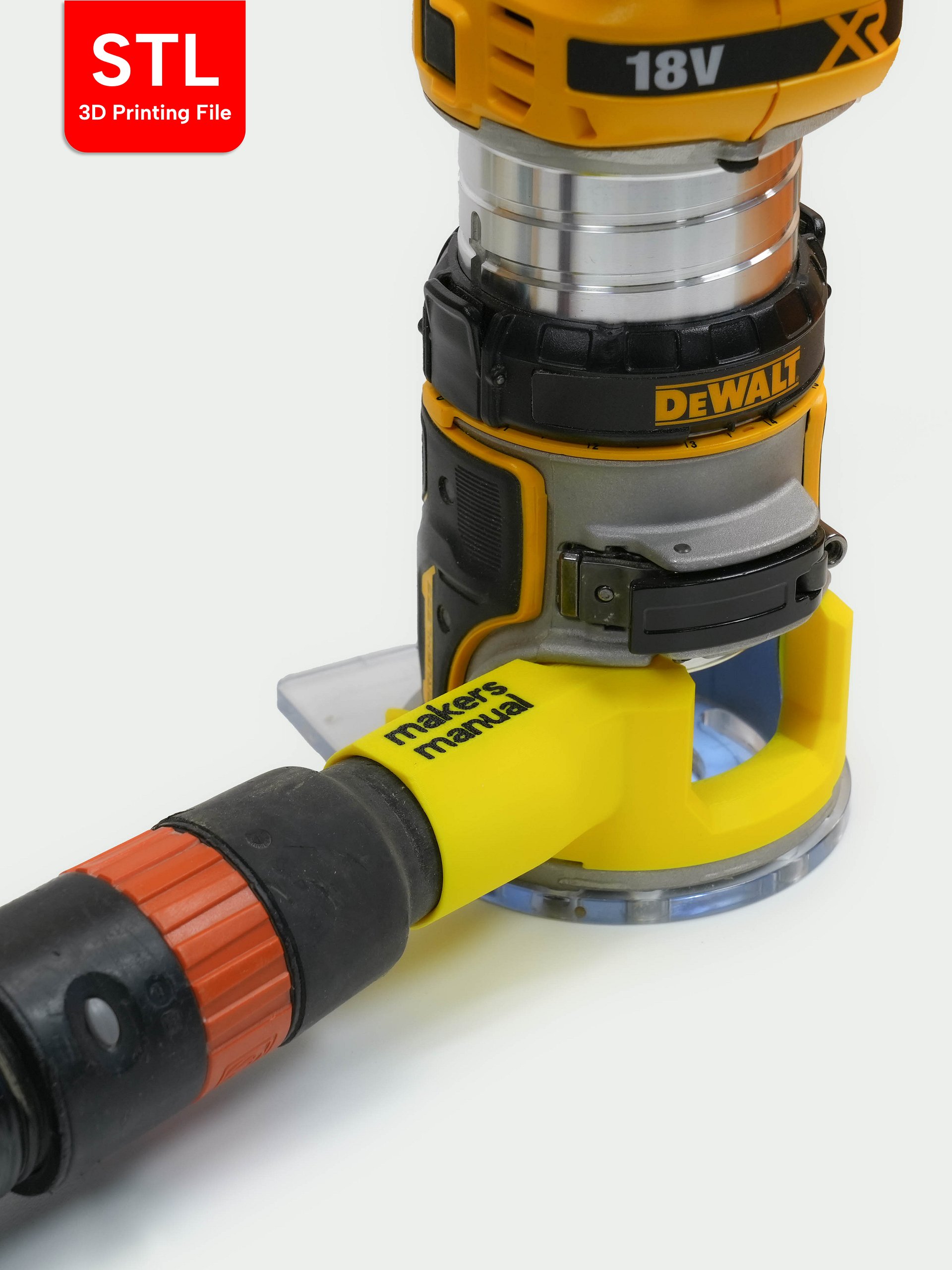

- Quick clip-on fitting - easy to install and remove
- Secure connection - holds firmly in place during use

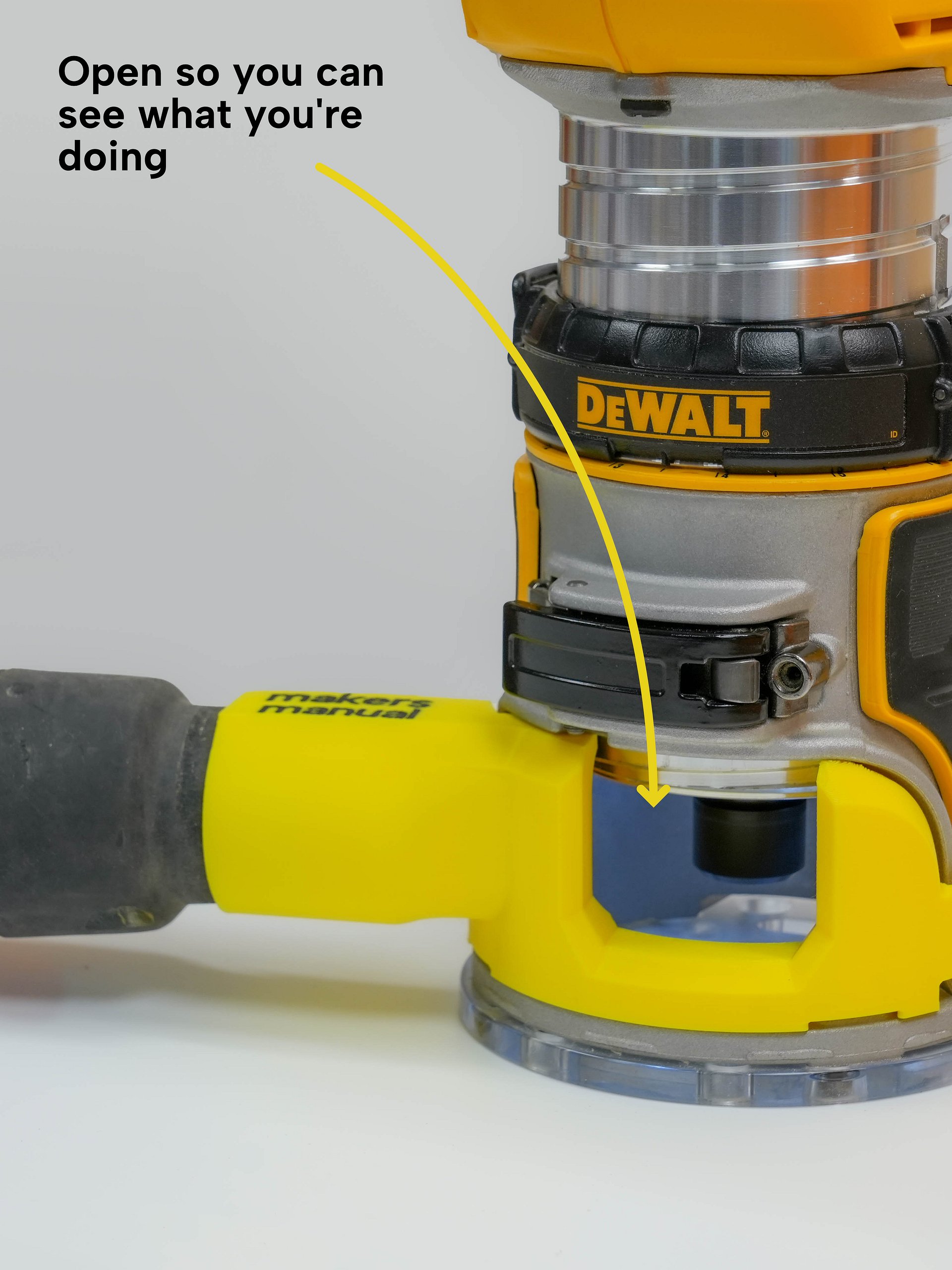

- Improved visibility - open front section allows you to see the router bit
- Effective dust extraction - particularly useful for V-grooves and rebate cuts
- Simple 3D printing - designed for straightforward printing without excessive filament use
Project Specifications
- File formats: STL and 3MF (3MF compatible with Bambu printers)
- Estimated filament usage: Approximately 55g
- Recommended material: PETG
- PLA: Also compatible, although PETG is recommended
What's Included?
Your digital download includes:
- STL files
- 3MF file for Bambu printers
- Illustrated PDF printing instructions
- Recommended 3D printing settings
3D Printing Information
The model has been optimised for efficient and straightforward printing. It uses approximately 55g of filament, based on the recommended settings in the included guide.
PETG is recommended, although PLA can also be used. You are free to adjust the print settings as you see fit, but doing so may affect filament usage and the finished result. Different 3D printers also have different capabilities, which can affect print quality and fit.
Important - Digital Download Only
This is a DIGITAL PRODUCT. No physical dust extraction adapter, materials or printed parts will be shipped.
Your purchase includes the digital STL and 3MF files, along with PDF printing instructions. Your files will be available after payment confirmation.
Licence & Usage
These files are licensed for personal use only. They must not be copied, shared, redistributed or resold, and are not licensed for professional or commercial use.
If you have any questions about the files or need help with your download, please get in touch. We're always happy to help.
Happy making!
Makers Manual
Frequently Asked Questions (FAQ)
Are your digital files good quality?
We take care to make sure our designs are practical, tested and easy to use. The included instructions explain the recommended print settings and assembly process. If you have any questions before or after purchase, please get in touch.
How do I download my files after purchase?
Your files will be available to download once payment is confirmed. You'll receive access through your order confirmation and by email.
Do I need experience with 3D printing?
You should be comfortable using your 3D printer and preparing STL files for printing. The included guide provides recommended settings, but some familiarity with your printer and slicing software is helpful.
Which filament should I use?
PETG is recommended, although PLA can also be used. For the best results, follow the recommended printing settings in the included guide.
Will it collect all the dust when routing?
No. Its effectiveness depends on the type of routing operation. It works particularly well for V-grooves and rebates, but is less effective when using pattern templates, where dust is expelled downwards.
What if I have trouble printing the adapter?
If you run into any problems, please get in touch. We're happy to help where we can.
Disclaimer
Product and Workshop Safety
Always follow the manufacturer's instructions for your router, vacuum and other workshop equipment. Ensure the printed adapter is correctly fitted and securely attached before use.
3D printed components can vary in strength and quality depending on the printer, material and settings used. Inspect the finished part for defects or damage before fitting it, and check it regularly during use.
This adapter is designed to assist with dust extraction. It does not eliminate airborne dust, so always use appropriate respiratory protection and suitable dust extraction equipment.
Our files are provided as guidance for personal use. You are responsible for checking that your printed part is suitable and safe for its intended application.
